Detailed Product Description
1. Strong SrO·6Fe2O3 Magnet with high quality
2. Custom-made dimension
3. Reasonable price
4. Certificate: ISO9001:2000
Permenant Ferrite Magnets for sale
Ferrite Magnets' outstanding properties
1) High performance:
JC-Y3932; JC-Y3939; JC-Y4041; JC-Y4127; JC-Y4231; JC-Y3744; power requirements).
2) High working temperature:
JC-Y4350 series with super high coercive force of 4800-5150 Oe can replace NdFeB magnets with lower price.
3) High consistency:
The Br and Hcj of the surface magnetic field and magnetic flux can be controlled within +/-1%.
4) High corrosion resistance:
The sales spray test and damp heat test of high anti-corrosion coating can exceed 800 hours
5) Low weight loss
The average low body weight loss within 20 days is less than 10mg/cm2.
Pros: Even when two blocks touch another block or common iron, they hold together very firmly. It's hard to pull them apart (but easy to slide).
Quick Details
| Place of Origin | Sichuan, China (Mainland), Sichuan, China (Mainland) |
| Brand Name | JOINT-MAG, Joint-Mag |
| Model Number | Other, permanent |
| Type | Permanent, Inverter Air Conditioner Ferrite Magnet |
| Composite | Ferrite Magnet, ferrite magnet |
| Shape | Sheet, arc, segment, tile. Block |
| Application | Inverter Air Conditioner |
| Size | According to the drawing |
| Name | Ferrite |
| Color | Charcoal gray |
| GRADE | Br | Hcb | Hcj | (BH)max |
| T | Gs | kA/m | Oe | kA/m | Oe | kJ/m3 | MGOe |
| JC-Y3932 | 0.375-0.400 | 3750-4000 | 230-275 | 2890-3456 | 235-290 | 2950-3645 | 26.5-31.5 | 3.33-3.96 |
| JC-Y3939 | 0.380-0.400 | 3800-4000 | 255-290 | 3200-3645 | 260-325 | 3260-4080 | 26.5-31.8 | 3.33-4.00 |
| JC-Y4041 | 0.390-0.415 | 3900-4150 | 260-300 | 3260-3770 | 300-350 | 3770-4400 | 27.0-32.0 | 3.39-4.02 |
| JC-Y4127 | 0.400-0.420 | 4000-4200 | 180-225 | 2260-2825 | 185-228 | 2320-2865 | 30.0-33.6 | 3.77-4.22 |
| JC-Y4231 | 0.410-0.430 | 4100-4300 | 220-260 | 2765-3265 | 255-270 | 2825-3390 | 31.5-35.5 | 3.95-4.46 |
| JC-Y3849 | 0.370-0.400 | 3700-4000 | 271-305 | 3405-3830 | 370-400 | 4650-5025 | 26.0-31.2 | 3.27-3.92 |
| JC-Y4240 | 0.410-0.430 | 4100-4300 | 285-314 | 3580-3945 | 306-340 | 3845-4270 | 31.5-34.4 | 3.95-4.32 |
| JC-Y4545 | 0.440-0.460 | 4400-4600 | 310-354 | 3895-4445 | 346-375 | 4350-4710 | 36.5-39.5 | 4.59-4.96 |
| JC-Y4350 | 0.420-0.440 | 4200-4400 | 295-325 | 3700-4080 | 382-410 | 4800-5150 | 33.5-36.5 | 4.21-4.59 |
Specifications
1, Ferrite magnet for DC motor
2, ISO/TS16949: 2009
3, Good quality and competitive price
4, Excellent service and aftermarket

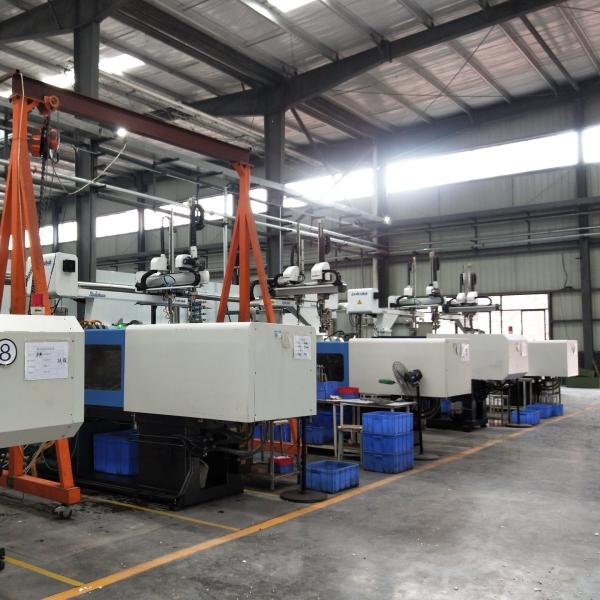

Sincerely welcome to visit our factory.
Samples are available for your test.
Address: Chenguang Industrial Park, Fushun County, Sichuan, China
Company Introduction:
Our company is certifcated by ISO/TS 16949: 2002 quality system, meanwhile we are a member organization of National Standarlized Technical Committee of magnetic components and ferrite materials, joint-mag is leading the development of the industry and has become one of the most powerful professional manufacturers of permanent ferrite products through continuous technological progress and equipment upgrade.
